> For the complete documentation index, see [llms.txt](https://106-sam.gitbook.io/ejptv2-notes/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://106-sam.gitbook.io/ejptv2-notes/crto/cobalt-strike/listeners-management.md). # Listeners Management ### What is a listener? The first step in configuring Cobalt Strike is to create one or more listeners. A listener defines the protocol and parameters by which a Beacon payload will communicate with the team server. The protocols provided by Cobalt Strike out of the box are DNS, HTTP, HTTPS, SMB, and TCP. These provide a mean of disguising the networking activity generated by a Beacon to look like traffic one would normally expect to see on a corporate network., ### Listener Types These listeners can also be split into two types: * **Egress** \ As a rule of thumb, an engress Beacon will communicate directly to a team server through the network boundary of the target environment. DNS and HTTP/S are egress listeners. * **Peer-to-Peer** \ A P2P Beacon does not communicate with the team server directly, but has its traffic routed through another Beacon instead.Multiple P2P Beacons can be chained together, but they will ultimately be linked to an egress Beacon for the traffic to reach the team server. SMB and TCP are the P2P listeners ### HTTP listener The HTTP listener directs Beacon to communicate with the team server via HTTP GET and/or POST requests. By default it will use GETs to fetch tasks from the team server and POSTs to send the results back. The team server starts a built-in web server to serve the requests.

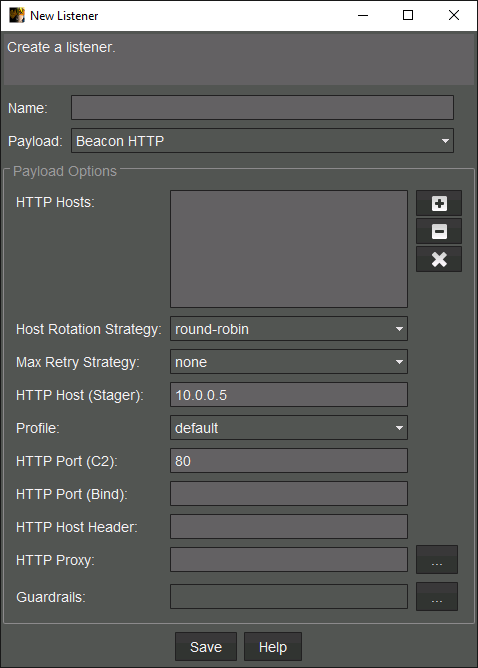

### HTTP hosts These are the hosts that Beacon will send its HTTP requests to, which may be provided as IP address or domain names. You may use IPs or domains that resolve directly back to the team server, or IP/domain resolve to a redirector. A redirector is an intermediatory host that sits between Beacon and a team server, and proxies traffic between the two. This course won't cover redirectors extensively, though popular software choices to act redirectors include iptables, socat, Apache, and NGINX. ### Host rotation strategy If more than one HTTP host is provided, the rotation strategy tells Beacon how it should use each one. These are useful for pushing back against frequency analysis techniques for finding systematic C2 traffic and providing resiliency in cases where one or more HTTP hosts are blocked. The options are **round-robin, random, failover, and rotate.** * **Round Robin** \ Beacon simply loops through the list top-to-bottom. Each host is used for one request before moving to the next. * **Random** Beacon randomly selects a different host for each request. * **Failover** Comes in several flavors: **failover-x** and **failover-m/h/d.** This directs Beacon to use the same host until the selected failover condition has been met - either the number of consecutive failed attempts, x; or continuous failures over the given time period in minutes, hours, or days. Beacon will then move onto the next host until no more remain. * **Rotate** \ This strategy comes in a single flavour: **rotate-m/h/d.** Similar to round-robin but each host is only used for the given time period before moving onto the next host in the list. ### Max retry strategy This configures Beacon's self destruct strategy in cases where all HTTP hosts become lost or blocked (i.e. we completely lose our ability to communicate with it). * **None** \ Beacon will not exit and will continue to run indefinitely unless terminated by other means. * **Exit** \ The syntax of this configuration appears confusing, but goes **exit-\[max\_attempts]-\[increase\_attempts]-\[duration]\[m/h/d].** * **max\_attempts** is the number of consecutive failed attempts before Beacon will exit. * **increase\_attempts** is the number of consective failed attempts before Beacon increases its sleep time. * **duration** is the number of hours, minutes, or days to set the new sleep time to. \ For example, **exit-50-25-1h** tells Beacon to increase its sleep time to 1 hour after 25 failed attempts, and then to exit if it reaches 50 failed attempts. ### HTTP host (Stager) Ths host is only used by stager payloads .Even if you have multiple HTTP hosts configured, a stager payload can only use a single host to fetch the full payload stage. You can use the same IP/domain as an existing HTTP host entry or use a different host entirely, as long as it resolves back to your team server. ### Profile Malleable C2 profiles can be configured with multiple traffic variants, which can be selected from this dropdown. You will not see anything other than default unless you have loaded a profile that has multiple variants configured in it. ### HTTP Port (C2) This is the HTTP port Beacon will attempt to connect to the team server on. Unless you want to use a non-standard port, you will in most cases keep this in-line with a port appropriate for the protocol. For example, 80 or 8080 for HTTP. ### HTTP Port (bind) This is the port that the team server will bind its built-in web server to. If no option is specified, it will use the same port as above. You would only want to set this to different port to perform port bending- i.e. using a redirector that will listen on the C2 port, but redirect the traffic to your team server on a different port. ### HTTP host header Setting a host header here will propagate it into the Beacon payload without having to explicitly set it within a Malleable C2 profile. This makes it more convenient to leverage domain fronting without hardcoding the domain in any of your profiles. ### HTTP proxy By default, Beacon will attempt to use the internet proxy configuration of the system it is running on. However, you can hardcode HTTP or SOCKS proxy information for the Beacon to use instead if required. This configuration is not applied to payload stagers. ### Guardrails Guardrails prevents stageless Beacon payloads from running unless the specified criteria has been met. This is useful in cases where your payloads are copied or forwarded outside of the target environment. Two possible scenarios include a phishing email being forwarded from a victim to an external party; or a blue teamer trying to analyse the payload in a sandbox. The available options are: the IP address of the host; the username of the account; the name of the host; and the name of the domain the host is joined to. ### DNS listener The DNS listener directs Beacon to communicate with a team server via DNS requests - specifically A, AAAA or TXT record lookups. The team server starts a built-in DNS server to serve requests.

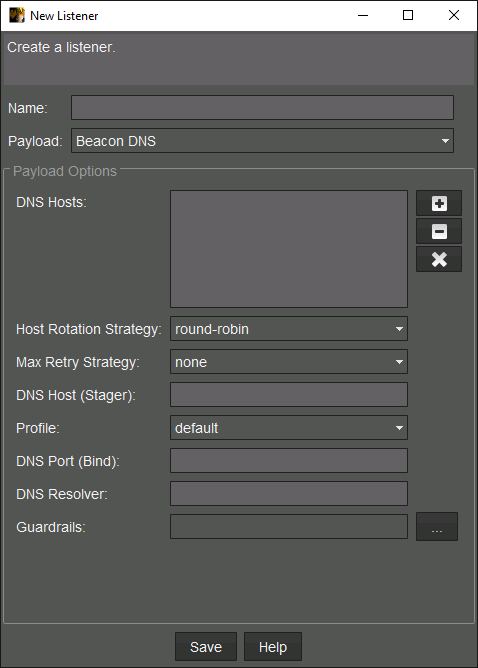

For the DNS Beacon to work, you must add the necessary DNS records to make your team server authoritative for one or more subdomains. In most cases, a party like your domain registrar wil lbe authoritative for your domain TLD. The DNS Beacon checks into the team server by performing an A record lookup for a domain setup in the DNS listener. Unlike other Beacons, such as the HTTP Beacon, the DNS Beacon does not transmit its full metadata straight away. This causes new DNS Beacons to initially appear as 'empty' rows with no information. The metadata is not sent until the Beacon is tasked with a job. There is a simple `checkin` command which does nothing other than to transmit the Beacon's metadata. ### DNS resolver By default, a DNS Beacon will use whatever DNS resolver the computer it's running on is configured with. You can overwrite this with a custom DNS resolver by entering its IP or hostname in this field. ### SMB Listeners The SMB listener is the first example of a listener that does not bind or listen on the team server VM - it only serves as a template for payload generation.
When executed, an SMB Beacon payload will create a SMB named pipe using the **pipename** specified in the listener configuration. It then requires another Beacon to connect to that named pipe and relay traffic between the SMB Beacon and the team server. This is done via the Windows SMB protocol on port 445. \ \ Cobalt Strike uses `msagent_##` by default, where `##` are random hex values. However, you may use any pipe name you wish, as long as it does not clash with an existing name on the host. You may also create multiple SMB listeners with different pipe names. ### TCP Listeners Like the SMB listener, the TCP listener does not direct the team server to listen on any TCP ports. It provides configuration information when generating TCP Beacon payloads.
When executed, a TCP Beacon payload will bind and listen on the C2 port specified in the listener configuration. It then requires another Beacon to connect to that port and relay traffic between the TCP Beacon and the team server. If **Bind to localhost only** is not checked, the Beacon will bind to **0.0.0.0**. If it is checked, it will bind to **127.0.0.1**. A TCP listener that binds to 0.0.0.0 could be used for lateral movement; and a listener that bind to 127.0.0.1 could be used for privilege escalation. You may create multiple TCP listeners with different port numbers and bind configurations.
